Original Articles

                                                                                                                                                                 Indian Pediatrics 2004; 41:779-785

Effect of Stepwise Reduction in Minute Ventilation on PaCO2 in Ventilated Newborns

N.B. Mathur and V. Bhatia

From the Referral Neonatal Unit, Department of Pediatrics, Maulana Azad Medical College and Associated Lok Nayak Hospital, New Delhi 110002, India .

Correspondence to: Dr. N.B. Mathur, Professor of Pediatrics, Maulana Azad Medical College and Associated Lok Nayak Hospital, New Delhi 110 002, India. E-mail : [email protected]

Manuscript received: December 11, 2002, Initial review completed: March 20, 2003,
Revision accepted: March 12, 2004.

Abstract:

Objective: To study the effect of step reduction of expired minute ventilation (MV) on PaCO2 in ventilated newborns and to determine whether MV within a defined range can predict PaCO2 . Design: Prospective descriptive. Setting: Referral neonatal unit of a teaching hospital. Methods: Forty neonates stable on mechanical ventilation receiving minute ventilation in the range of 150-210 ml/kg/min. were studied. The spectrum of disorders for which the babies were ventilated included apnea of prematurity in 16, pneumonia in 14, meconium aspiration syndrome in 6 and hyaline membrane disease in 4. Median age at study was 6 days and median weight at study was 2.1 kgs. The MV was reduced from 210 to 150 mL/kg/min in three steps and concomitant PaCO2 was measured. Reductions were not done if PaCO2  was more than 50 mmHg. MVs were plotted against PaCO2 and a regression equation to predict PaCO2 from MV was calculated. Results: A stepwise increase was seen in CO2 with reduction of MV over the range studied. The median MV and median PaCO2 achieved in the three steps were 201 mL/kg/min and 36.7 mm of Hg, 180 mL/kg/min and 41.7 mm of Hg, 160 mL/kg/min., and 44.3 mm of Hg. The regression equation to predict PaCO2 was PaCO2 = 70 - 0.17 x MV in mL/kg/min, r = -0.45, r2 = 0.20, p<0.001, residual variance (s2) = 39.37; 95% C.I. gave a predicted PaCO2 within ± 12.5 mmHg. for a given MV. Conclusion: Reducing minute ventilation led to an increase in the levels of PaCO2. Minute volumes of 160 ml/kg/min correlated with PaCO2 value of 44.3 mm of Hg. MV as low as 160 mL/kg/min are well tolerated by newborns.

Key words: Mechanical ventilation, minute ventilation, neonate, PaCO2 .

Normal values of minute ventilation in spontaneously breathing neonates have been determined using varying methodology and show wide variations(1-11). The focus in neonatal ventilation is now shifting from pressure controlled ventilation to volume controlled ventilation. This is due to recognition of the fact that hypocarbia and volutrauma and not barotrauma is the causative agent for lung damage and adverse neurodevelopmental outcome. Newer ventilators are being available that target specific volumes. There are few studies on evaluation of minute ventilation required to avoid unacceptable levels of PaCO2 in mechanically ventilated neonates. This prompted us to undertake the present study with the objective of (i) evaluating PaCO2 in neonates ventilated with minute ventilation of 200mL/kg. (ii) Evaluating the effect of step reduction of minute ventilation on PaCO2.

Methods

The study was conducted in the referral neonatal unit of the Department of Pediatrics, Maulana Azad Medical College and Lok Nayak Hospital between March and December 2000. The institutional research committee approved the study. The referral neonatal unit is a tertiary care unit catering to neonates referred from hospitals in Delhi and surrounding states or brought directly from home.

Neonates stable on mechanical ventilation were eligible for the study if all the following criteria of stability were met: SaO2 90-95%, Capillary Filling Time (CFT) <3 seconds, skin temperature 36.5–37.5ºC, pH 7.3–7.45, peak inspiratory pressure (PIP) <20 mbar, set respiratory frequency <60/min, fraction of inspired oxygen (FiO2) <60%. A total of 40 neonates stable on mechanical ventilation fulfilling the inclusion criteria were enrolled for the study. All neonates received assisted ventilation with Babylog 8000 plus (Drager Inc.); a pressure limited time-cycled ventilator.

The study involved measuring the PaCO2 in neonates receiving minute ventilation in the range of 150-210 mL/kg/min. PIP was set to provide tidal volumes between 5-8mL/kg and respiratory frequency was manipulated to get the desired expired minute ventilation. Concomitant PaCO2 values were determined at minute ventilation of 200±10,180±10 and 160±10 mL/kg/min. The step reductions in minute volume were predominantly achieved by lowering the respiratory frequency. This was done by increasing the expiratory time for the breathing cycle. The inspiratory time was kept constant. Pancuronium was used only in neonates asynchronous with ventilator as a single dose and not used routinely. Endotracheal leak displayed as measured value by the ventilator was documented. It was ensured that there was no significant endotracheal leak while the observations were made (<10% difference between inspiratory and expiratory tidal volumes). The set ventilatory parameters were recorded. These included the Peak Inspiratory Pressure, Positive End Expiratory Pressure, inspiratory time, expiratory time, fraction of inspired oxygen and set frequency. Samples for PaCO2 were drawn from an arterial line after the baby was on the targeted minute ventilation for a period of thirty minutes. If a PaCO2 value of more than 50 mm Hg were obtained further reduction in minute ventilation was not done. SaO2 was continuously maintained in the desired range by manipulating the FiO2. Expired minute ventilation was read from the displayed value measured by the flow sensor (hot wire anemometer) of the ventilator. It has low dead space (0.7 mL) and is lightweight. It has response characteristics that are suitable at high frequencies and avoids overshoot with sudden flow changes. It is little affected by the moisture content of the gas(12). It is attached to the Y piece to which the endotracheal tube is connected. The flow sensor was calibrated prior to each study.

The other recorded variables included compliance, resistance, mean airway pressure and C20/C (an index of over distension of lungs, it is the ratio of the compliance of the last 20% of the dynamic pressure volume curve to the overall compliance). These were measured and displayed by the ventilator.

Linear regression was performed with PaCO2 as the dependent variable and MV as the independent variable to give a regression equation with 95% confidence interval. The R2 (coefficient of determination), r (product moment correlation coefficient or Pearson correlation coefficient) and S2 (residual variance) were calculated for the above two variables.

Results

The study population had 10 neonates less than 32 weeks gestation; 12 between 33 and 36 weeks and 18 between 37 and 42 weeks. The median and interquartile range for age at inclusion was 6 (3-12) days and for weight was 2.1 kg. (1.46 kg. - 2.58 kg). The indications for ventilation are shown in Table I.

TABLE I

Indications of Ventilation in the Study Population
Indication
Cases
Pneumonia
14
Hyaline membrane disease
4
Meconium aspiration syndrome
6
Apnea of prematurity
2
Apnea secondary to :
Sepsis
9
Hypoxic ischemic encephalopathy
4
Milk Aspiration
1
Total
40



The minute ventilation targeted in the first step was 200mL/kg/min.; the achieved median minute ventilation was 201 mL/kg/min. The median PaCO2 at this minute ventilation was 36.7 mmHg. In the next step the achieved median minute ventilation was 180 mL/kg/min and the median PaCO2 was 41.7 mmHg. In the last step the achieved median minute ventilation was 160 mL/kg/min., and the median PaCO2 was 44.3 mmHg. (Table II). The ventilatory parameters are given in Table III.

TABLE II

Correlation of Mean Ventilator Settings and Arterial Blood Gases with the Three
Step Changes in Minute Ventilation.
  Step1: Targeted
MV = 200 ml/kg
Median (95% CI)
Step2: Targeted
MV = 180ml/kg
Median (95% CI)
Step3: Targeted
MV = 160 ml/kg
Median (95% CI)
Actual MV
201(200-205)
180 (177-182)
160 (156-162)
PaCO2
36.7 (34.6 -39.7)
41.7 (38.1-43.6)
44.3 (42.1-46.4)
Frequency
38 (36-40)
35 (33-38)
31 (30-32)
FIO2
40 (40-50)
40 (35-50)
40 (35-50)
pH
7.38 (7.348-7.39)
7.35 (7.347-7.36)
7.32 (7.30 -7.36)
PaO2
81.8 (72.8-86.5)
74.7 (69.0-77.4)
71.3 (67.7-76.0)
Bicarbonate
19.8 (18.8-20.3)
19.1(18.6-19.7)
20.2(19.0-21.0)



Table III

Ventilatory Parameters (Median and Inter Quartile Range) in Relation to the Three Step
Reductions of Minute Ventilation.
  Step 1 Step 2 Step 3
MAP, (cm H2O)
6.9(6.03-7.99)
6.3(5.59-7.28)
6.4(5.41-7.5)
Compliance (ml/mbar)
1.0(0.89-1.26)
1.0(0.86-1.2)
1.1(0.93-1.2)
Resistance (mbar/l/s)
77.0(68.5-87)
77.0(65.75-86.75)
76.0(65.25-89)
C20/C
2.1(1.51-2.3)
2.1(1.53-2.3)
2.0(1.46-2.32)

One hundred and rwenty measurements of MV and concomitant PaCO2 were made from 40 neonates. The line of best fit and scatter plot is given in Fig 1. Regression equation for prediction of PaCO2 (mm Hg) by MV (mL/kg/min) is: PaCO2 = 70 – 0.17 × MV. The correlation coefficient (r) was –0.45 and coefficient of determination (r2) was 0.20. The regression coefficient was statistically significantly different from 0 (p <0.001). The residual variance (s2) was 39.37 (s = 6.27), which gives 95% confidence intervals allowing the prediction of PaCO2 to within ± 12.5 mm Hg for a given MV.

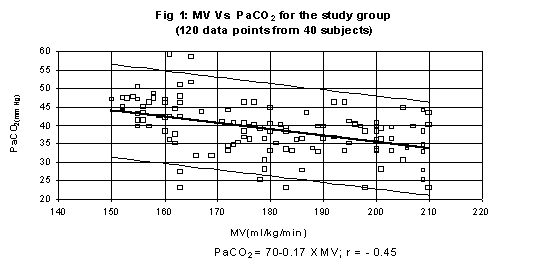

Fig. 1. MV vs. PaCo2 for the study group (120 data points from 40 subjects)

The regression equation to predict PaCO2 from MV in neonates ventilated for pneumonia was:

PaCO2 = 69 – 0.16 × MV (n = 42) R2 = 0.12,

r = – 0.35, s = 7.49

Regression equation to predict PaCO2 from MV in neonates ventilated for HMD was:

PaCO2 = 70 -0.16 × MV (n = 12) R2 = 0.17,

r = – 0.41, s = 4.92

Regression equation to predict PaCO2 from MV in neonates ventilated for MAS was:

PaCO2 = 79 – 0.22 × MV R2 = 0.42,

r = –0.65, s= 4.32

Regression equation to predict PaCO2 from MV in neonates ventilated for apnea group was:

PaCO2 = 70 – 0.17 × MV (n = 48) R2 = 0.23,

r = –0.48, s = 5.67

Discussion

Minute ventilation is a continuously displayed parameter that can be used to optimise ventilator settings. It can be used in conjunction with the intermittently available PaCO2 values. Carbon dioxide elimination is inversely proportional to minute ventilation. In our study we have shown a correlation between MV and PaCO2. Although alveolar ventilation correlates better with PaCO2, determining it requires cumbersome technique, which is not feasible routinely. MV may be taken as a surrogate marker for alveolar ventilation. To the best of our knowledge this aspect has been studied in only one study(11). The predicted PaCO2 level at a MV of 200 mL/kg/min in our study is 35 mm of Hg as compared to 43 mm of Hg observed by Davies, et al. in preterm neonates with Hyaline membrane disease(11). This difference could be attributed to the difference in the population studied. Davies, et al. took multiple measurements (up to 5) from the same patient, thereby making the observations not strictly independent(11). Although it is possible to determine a directional trend in PaCO2 with a change in MV (Fig. 1) MV may not calculate PaCO2 in an individual neonate due to variations because of other factors.

The median minimum minute ventilation in our study was 160 mL/kg/min, at which the PaCO2 was 44.3 mmHg. This minute ventilation can be used as a goal in neonatal ventilation to optimize ventilator settings. The minute ventilation targeted and achieved in our study were comparably less than those earlier reported (Table IV). These high values probably reflected a tendency to aim for PaCO2 levels between 35-45 mm Hg.

TABLE IV

Studies on Minute Ventilation in Spontaneously Breathing Neonates.
Author

N

MV (ml/kg/min)/
(ml/min)*
Group

Respiration

Technique used

Cross (1)
26
204 ± 19.3
Normal
Spontaneous
Body plethysmography
Cross (2)
30
396.3
Normal
Spontaneous
Body plethysmography
preterm
Cook, et al. (3)
35
498*
Normal
Spontaneous
Body plethysmography
Nelson, et al. (4)
25
480*
Normal
Spontaneous
Body plethysmography
14 632* IDM
Schulze, et al. (5)
40
286
Normal
Spontaneous
Bias flow pneumotachometry
Watts, et al. (6)
19
313.5± 18.8
Normal
Spontaneous
Pneumotachometer
19 287.6 ± 18 Severe
HMD
33 306.3 ± 17.5 BPD
Chu, et al. (7)

270 ±  72
Normal
Spontaneous
Pneumotachometer
Mizuno, et al. (8)

450 ±  40
VLBW
Spontaneous
Pneumotachometer


320 ±  20
Normal
Spontaneous
Pneumotachometer
Epstein, et al. (9)
15
295 ± 77

Ventilated
Spirometer
Greenspan, et al. (10)
36
1 week 476 ± 27
VLBW
Ventilated
Pneumotachometer
    4 weeks 498 ± 21
    8 weeks 467 ± 23
Davies, et al. (11)
14
252± 75
RDS
Ventilated
? Flow sensor

Optimal Carbon dioxide elimination is a crucial objective in mechanical ventilation. Traditional ventilator management in neonates aimed at achieving PaCO2 values between 35-45 mm Hg even if high support was necessary. However, the need for ventilation strategies that reduce baro- and volutrauma has also led to tolerance of higher PaCO2(13). Critical evaluation of present ventilator strategies focuses on what PaCO2 levels are safe for newborn lungs and brain(15). Hypercapnia has physiologic effects on gas exchange that may provide important benefits(14-17).

Over ventilation, volutrauma and hypocapnia are associated with increased secondary lung damage, a higher incidence of chronic lung disease and adverse neurodevelopmental outcome(18-21).

To conclude, setting optimum minute ventilation can avoid abnormal PaCO2 levels. Minute ventilation is a non-invasive continuously available parameter, which can be used to optimize ventilator settings.

Contributors: NBM conceived and designed the study, finalized the manuscript and will act as the guarantor of the paper. VB collected the data and drafted the manuscript

Funding: None.

Competing interests: None stated.



Key Messages


• Minute ventilation was found useful in optimising ventilator settings.

• Minute ventilation of 200, 180 and 160 mL/kg/minute correlated with PaCO2 value of 36, 41 and 44 mm of Hg respectively.




References


1. Cross KW. The respiratory rate and ventilation in the newborn baby. J Physiol 1949; 109: 459-474.

2. Cross KW. The respiratory rate and ventilation in the preterm baby. J Physiol 1952; 114:146-157.

3. Cook CD, Cherry RB, O’Brein D, Karlberg P, Smith CA. Studies of respiratory physiology in the newborn infant. I. Observations on normal premature and full term infants. J Clin Invest 1955; 34: 975-982.

4. Nelson NM, Prod’hom LS, Cherry RB, Lipzitz PJ, Smith CA. Pulmonary function in the newborn infant. Pediatrics 1962; 30: 963- 974.

5. Schulze K, Kairam R, Stefanski M, Sciacca R, James LS. Continuous measurement of minute ventilation and gaseous metabolism of newborn infants. J Appl Physiol. Respirat Environ Exercise Physiol 1981; 50: 1098-1103.

6. Watts JL, Ariagno RL, Brady JP. Chronic pulmonary disease in neonates after artificial ventilation: Distribution of ventilation and pulmonary interstitial emphysema. Pediatrics 1977; 60: 273-281.

7. Chu J, Clements JA, Cotton EK, Klaus MH, Sweet AY, Tooley WH. Neonatal pulmonary ischemia: Clinical and physiological studies. Pediatrics 1967; 40: 709-766.

8. Mizuno K, Saikawa N, Go N, Kitazawa S. Pulmonary Mechanics of normal very low birth weight infants at 40 weeks post conception. A comparison with normal term infants. Am J Perinat 1998; 15: 217-219

9. Epstein RA, Hyman AI. Ventilatory requirements of critically ill neonates. Anesthesiology 1980 ; 53: 379-84.

10. Greenspan JS, Abbasi S, Bhutani VK: Sequential changes in pulmonary mechanics in the very low birth weight ( 1,000 grams) infant. J Pediatr 1988;113:732-737.

11. Davies MW, Kecskes ZB, Berrington J. Determining the ventilatory volumes required to ventilate low birth weight infants with respiratory distress syndrome. Prediction of arterial carbon dioxide using minute volumes. Biol Neonate 2002; 82: 233-237.

12. Plakk P, Luk P, Kingisepp PH. Hotwire anemometer for spirography. Med Biol Eng Comput 1998; 36: 17-21.

13. Gannon CM, Wiswell TE, Spitzer AR. Volutrauma, PaCO2 levels and neuro-developmental sequelae following assisted ventilation Clin Perinat 1998; 25: 159-175.

14. Carlo WA, Stark AR, Wright LL, Tyson JE, Papile LA, Shankaran S, et al. Minimal ventilation to prevent bronchopulmonary dysplasia in extremely-low-birth-weight infants. J Perinat Med 1997; 25: 333-339.

15. Mariani GL, Carlo WA. Ventilatory management in neonates: science or art? In: Goldsmith JP, Spitzer AR, eds. Controversies in Neonatal Pulmonary Care. Philadelphia, PA: WB Saunders; 1998: 33-48.

16. Slutsky AS. Mechanical ventilation: ACCP consensus conference. Chest 1993; 104:1833-1859.

17. Mariani G, Cifuentes J, Carlo WA. Randomized trial of permissive hypercapnia in preterm infants. Pediatrics 1999; 104: 1082-1088.

18. Avery ME, Tooley WH, Kaller JB. Is chronic lung disease in LBW infants preventable? A survey of 8 centers. Pediatrics 1987; 79: 26-31.

19. Kraybill EN, Runyan DK, Bose CL, Khan JH. Risk factors for chronic lung disease in infants with birth weights of 751 to 1000 grams. J Pediatr 1989; 115: 115-120.

20. Garland JS, Buck RK, Allred EN, Leviton A. Hypocarbia before surfactant therapy appears to increase bronchopulmonary dysplasia risk in infants with respiratory distress syndrome. Arch Pediatr Adolesc Med 1995;149: 617-622.

21. Dreyfuss D, Soler P, Basset G. High inflation pressure pulmonary edema. Respective effects of high airway pressure, high tidal volume, and positive end-expiratory pressure. Am Rev Respir Dis 1988;137: 1159-1163.
