Letters to the Editor Indian Pediatrics 2005; 42:965-966 |
||
ABG made easy |
||

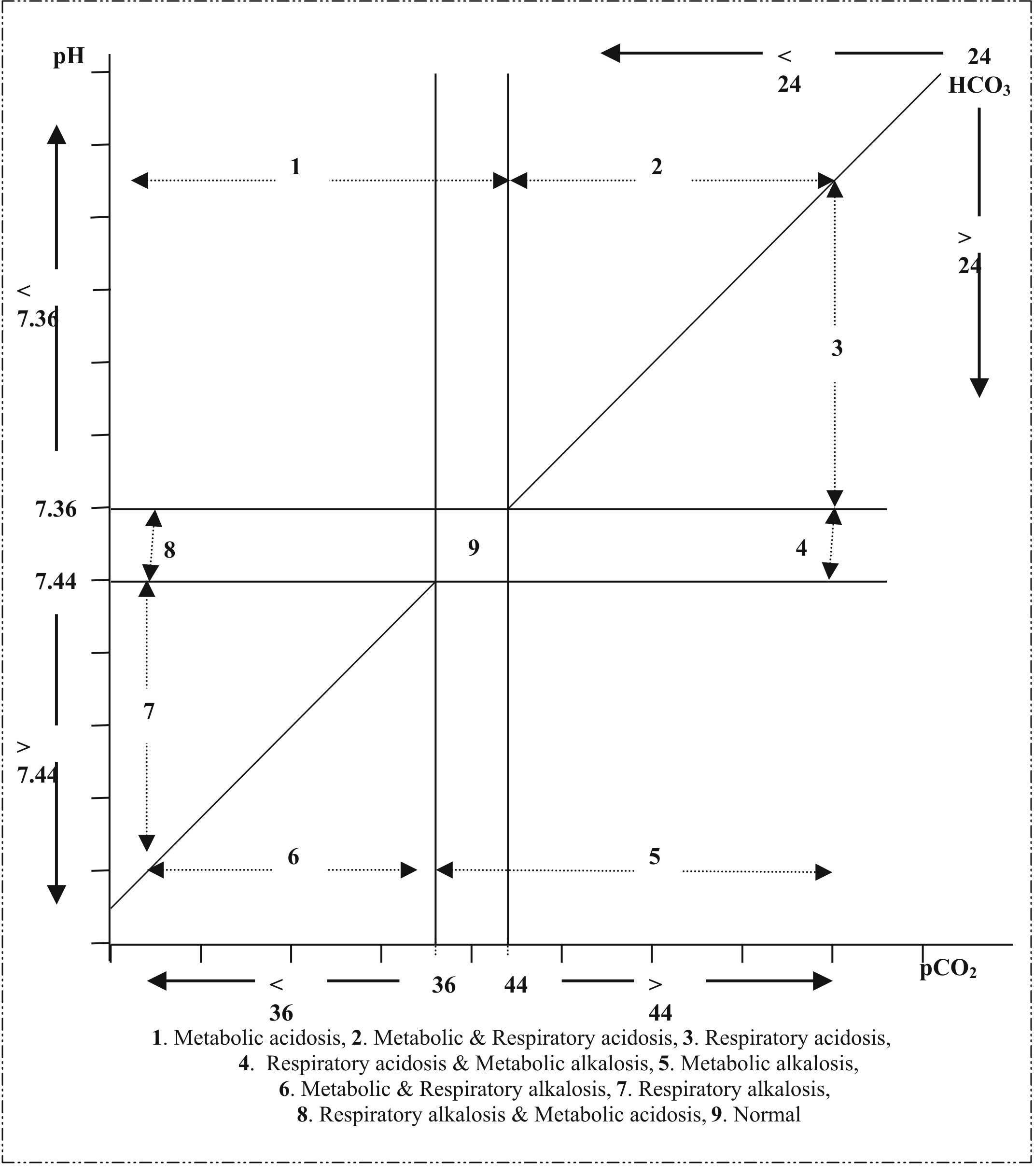

This nomogram has been derived using the normal range of pH (7.36-7.44), pCO2 (36- 44 mmHg), HCO3 (22-26) and the formula that an increase in 10 mmHg of pCO2 will decrease in pH by 0.08. The steps in using the nomogram are: 1. Is the pH normal or <7.36 or >7.44? 2. Then is pCo2 normal or <36 or >44 mmHg? Depending on the area it falls the interpretation is done as shown in Fig. 1. 3. If the values fall in areas 2, 3, 6 & 7. See if HCO3 is < 24 or > 24. If the HCO3 value is between 22-26 the results are always isolated respiratory disturbance. Advantages of this nomogram are, it is user friendly, there is no need of even a scale to plot the values and all ABG values have an interpretation. This nomogram could be used in ICU setting for quick reference and can be used by beginners to check their interpretation on ABG. So. Shivbalan, |
